61.7532-10023 | Stäubli Electrical Connectors

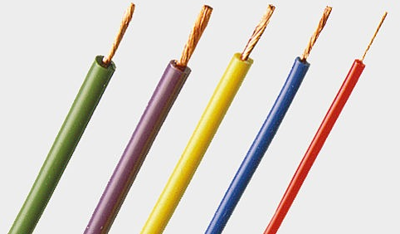

Silicone-stranded wire, highly flexible, halogen free, SiliVolt-E, 0.5 mm², blue, outer Ø 2.3 mm, 61.7532-10023
Unit Price (€ / mtr.)
2.4752 € *
Available: 27 mtr.
Leadtime: On Request **
Total Price:
2.48 € *
Price list
Quantity
Price per unit*
1 mtr.
2.4752 €
10 mtr.
2.2015 €
100 mtr.
1.9159 €
500 mtr.
1.7612 €
1000 mtr.
1.6184 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 61.7532-10023, Stäubli Electrical Connectors
Super flexible basic insulated stranded wire and tinned wire strands for continuous use at temperatures up to 150 °C.
Applications
- Internal wiring of very mobile components
- Super flexible connecting leads
Technical specifications
| Core insulation material | silicone | |
| Outer diameter | 2.3 mm | |
| Colour | blue | |
| Halogen free | Yes | |
| Cable structure | 129 x 0.07 mm | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.5 mm² | |
| Rated voltage | 300 V | |
| Standard number | UL | |
| Test voltage | 2 kV | |
| Temperature range (active) | -50 °C to 150 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
