61.7550-10027 | Stäubli Electrical Connectors

Silicone-stranded wire, highly flexible, halogen free, SiliVolt-E, 0.15 mm², brown, outer Ø 1.1 mm, 61.7550-10027

Order No.: 94F1083
EAN: 4099891185152
MPN:
61.7550-10027
61.7550-27
Series: SiliVolt-E
61.7550-10027 Stäubli Electrical Connectors Insulated stranded wires

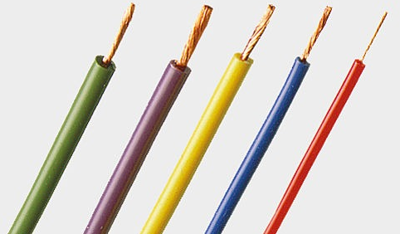

Image may differ
Unit Price (€ / mtr.)
1.0115 € *
Available: 90 mtr.
Leadtime: On Request **
Total Price:
1.01 € *
Price list
Quantity
Price per unit*
1 mtr.
1.0115 €
10 mtr.
0.8925 €
100 mtr.
0.7854 €
500 mtr.
0.7259 €
1000 mtr.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale

Stranded wire, 61.7550-10027, Stäubli Electrical Connectors

Super flexible basic insulated stranded wire.

Applications

  • Internal wiring of very mobile components
  •  Super flexible connecting leads
Technical specifications
Core insulation material Silikon
Outer diameter 1.1 mm
Colour braun
Halogen free Yes
Cable structure 39 x 0,07 mm
Conductor category Kl.6 = feinstdrähtig
Cable material Kupfer, blank
Cable cross-section 0,15 mm²
Rated voltage 150 V
Standard number UL
Test voltage 2 kV
Temperature range (active) -50 °C bis 90 °C
Logistics
Country of origin CH
Customs tariff number 85366990
Original Packaging Rolle mit 100 Meter
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
