61.7555-10020 | Stäubli Electrical Connectors

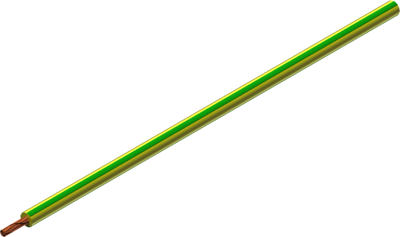

Silicone-stranded wire, highly flexible, halogen free, SiliVolt-E, 1.5 mm², green/yellow, outer Ø 3.4 mm, 61.7555-10020
Unit Price (€ / mtr.)
4.4387 € *
Available: 137 mtr.
Leadtime: 1 Week **
Total Price:
4.44 € *
Price list
Quantity
Price per unit*
1 mtr.
4.4387 €
10 mtr.
3.9270 €
100 mtr.
3.4153 €
500 mtr.
3.1654 €
1000 mtr.
2.9036 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 61.7555-10020, Stäubli Electrical Connectors
Super flexible basic insulated stranded wire.
Applications
- Internal wiring of very mobile components
- Super flexible connecting leads
Technical specifications
| Aderisolationsmaterial | Silikon | |
| Außendurchmesser | 3.4 mm | |
| Farbe | grün/gelb | |
| Halogenfrei | Yes | |
| Leiteraufbau | 392 x 0,07 mm | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,5 mm² | |
| Nennspannung | 600 V | |
| Nennspannung UL/CSA | 600 V | |
| Norm | UL | |
| Prüfspannung | 2.5 kV | |
| Temperaturbereich (bewegt) | -50 °C bis 90 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Rolle mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
