61.7607-10024 | Stäubli Electrical Connectors

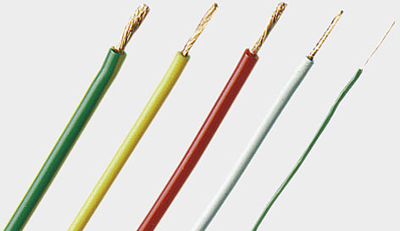

Silicone-stranded wire, highly flexible, halogen free, SiliVolt-1V, 1.0 mm², yellow, outer Ø 3.9 mm, 61.7607-10024
Unit Price (€ / mtr.)
4.4863 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
4.49 € *
Price list
Quantity
Price per unit*
1 mtr.
4.4863 €
10 mtr.
3.9389 €
100 mtr.
3.5819 €
500 mtr.
3.3201 €
1000 mtr.
3.0583 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 61.7607-10024, Stäubli Electrical Connectors
Super flexible stranded wire with reinforced insulation.
Applications
- Hand-held test leads for high thermal stress
Technical specifications
| Core insulation material | silicone | |
| Outer diameter | 3.9 mm | |
| Colour | yellow | |
| Halogen free | Yes | |
| Cable structure | 511 x 0.05 mm | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.0 mm² | |
| Rated voltage | 1.5 kV | |
| Standard number | UL | |
| Test voltage | 8 kV | |
| Temperature range (active) | -50 °C to 90 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85446090 |
| Original Packaging | Reel with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
