61.7631-10022 | Stäubli Electrical Connectors

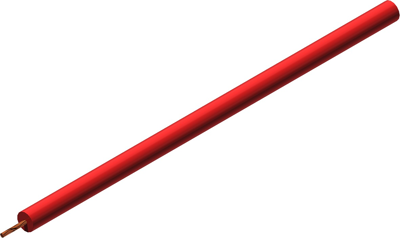

Silicone-stranded wire, highly flexible, halogen free, SiliVolt-HV, 0.75 mm², red, outer Ø 5 mm, 61.7631-10022
Unit Price (€ / mtr.)
7.7945 € *
Available: 88 mtr.
Leadtime: On Request **
Total Price:
7.79 € *
Price list
Quantity
Price per unit*
1 mtr.
7.7945 €
10 mtr.
7.0924 €
50 mtr.
6.5569 €
100 mtr.
6.0214 €
500 mtr.
5.6763 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 61.7631-10022, Stäubli Electrical Connectors
Super flexible, reinforced insulated stranded wire. Super-fine Cu strand, bright-soft, tightly twisted.
Features
- Silicone insulation
- Halogen-free
Applications
- Flexible high voltage wiring
- Hand-held test leads for high voltage tests
Technical specifications
| Core insulation material | silicone | |
| Outer diameter | 5 mm | |
| Colour | red | |
| Halogen free | Yes | |
| Cable structure | 196 x 0.07 mm | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.75 mm² | |
| Rated voltage | 3.8 kV | |
| Test voltage | 15 kV | |
| Temperature range (active) | -50 °C to 90 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85446010 |
| Original Packaging | Reel with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
