61.7632-10021 | Stäubli Electrical Connectors
Silicone-stranded wire, highly flexible, halogen free, SiliVolt-HV, 1.0 mm², black, outer Ø 5.5 mm, 61.7632-10021
Unit Price (€ / mtr.)
9.0559 € *
Available: 60 mtr.
Leadtime: On Request **
Total Price:
9.06 € *
Price list
Quantity
Price per unit*
1 mtr.
9.0559 €
10 mtr.
8.2348 €
50 mtr.
7.6041 €
100 mtr.
6.9972 €
500 mtr.
6.5807 €
*incl. VAT plus shipping costs
**Subject to prior sale

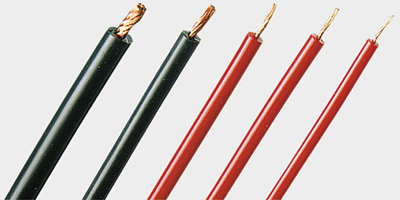

Stranded wire, 61.7632-10021, Stäubli Electrical Connectors
Super flexible, reinforced insulated stranded wire. Super-fine Cu strand, bright-soft, tightly twisted.
Features
- Silicone insulation
- Halogen-free
Applications
- Flexible high voltage wiring
- Hand-held test leads for high voltage tests
Technical specifications
| Aderisolationsmaterial | Silikon | |
| Außendurchmesser | 5.5 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leiteraufbau | 259 x 0,07 mm | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,0 mm² | |
| Nennspannung | 5 kV | |
| Prüfspannung | 20 kV | |
| Temperaturbereich (bewegt) | -50 °C bis 90 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85446090 |
| Originalverpackung | Rolle mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
