14.0006-23 | Stäubli Electrical Connectors

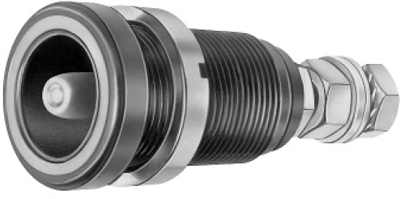

6 mm panel plug, threaded bolt, 25 mm², mounting Ø 18.5 mm, blue, 14.0006-23
Unit Price (€ / pc.)
45.2795 € *
Available: 25 pcs.
Leadtime: 1 Week **
Total Price:
45.28 € *
Price list
Quantity
Price per unit*
1 pcs.
45.2795 €
5 pcs.
42.7686 €
10 pcs.
40.2458 €
25 pcs.
37.7468 €
50 pcs.
35.2478 €
*incl. VAT plus shipping costs
**Subject to prior sale
Panel plug, 14.0006-23, Stäubli Electrical Connectors
Model ID/S6NB safety flush-mounting plug is insulated plug designed for flush mounting in housings and panels. This plug, which has no locking device, can be used with sockets KBT6AR-N, right angled plugs KBT6AR-W-N/...S and double sockets BD6AR-N-S.
Internal connection with M6 threaded stud with nuts and washers.
Technical specifications
| Anschluss | Gewindebolzen | |
| Ausführung | Einbaustecker | |
| Bemessungsspannung | 600 V | |
| Bemessungsstrom | 125 A | |
| Berührungssicher | Yes | |
| Durchmesser | 6 mm | |
| Einbaudurchmesser | 18.5 mm | |
| Farbe | blau | |
| Kontaktoberfläche | vernickelt | |
| Länge | 58 mm | |
| Leiterquerschnitt | 25 mm² |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
