14.0010-23 | Stäubli Electrical Connectors

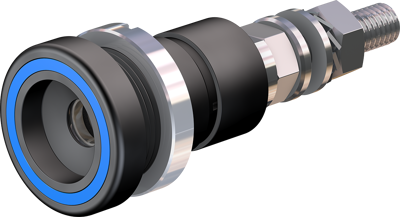

6 mm socket, threaded bolt, mounting Ø 18.5 mm, blue, 14.0010-23

Order No.: 15F3413
EAN: 4099889665772
MPN:
14.0010-23
ID/B6AR-N-S BLAU
Series: Powerline
Stäubli Electrical Connectors
14.0010-23 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
47.4215 € *
Available: 30 pcs.
Leadtime: 2 Weeks **
Total Price:
47.42 € *
Price list
Quantity
Price per unit*
1 pcs.
47.4215 €
5 pcs.
44.7916 €
10 pcs.
42.1617 €
25 pcs.
39.5318 €
50 pcs.
36.8781 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket, 14.0010-23, Stäubli Electrical Connectors

Model ID/B6AR-N-S safety panel receptacle is insulated socket, designed for flush mounting in housings and panels. Mating plugs with suitable locking devices can be snap-locked into the receptacle.

The internal connection is made with a threaded stud (M6) carrying nuts and washers for the connection of cables fitted with lugs.

Technical specifications
Connection threaded bolt
Version socket
Rated Voltage 600 V
Rated current 100 A
Touch safe Yes
diameter 6 mm
Installation diameter 18.5 mm
Colour blue
contact surface nickel-plated
Length 63 mm
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
