14.0010-27 | Stäubli Electrical Connectors

6 mm socket, threaded bolt, mounting Ø 18.5 mm, brown, 14.0010-27

Order No.: 15F3417
EAN: 4099889665819
MPN:
14.0010-27
ID/B6AR-N-S BRAUN
Series: Powerline
Stäubli Electrical Connectors
14.0010-27 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
46.0411 € *
Available: 21 pcs.
Leadtime: 1 Week **
Total Price:
46.04 € *
Price list
Quantity
Price per unit*
1 pcs.
46.0411 €
5 pcs.
43.4826 €
10 pcs.
40.9360 €
25 pcs.
38.3775 €
50 pcs.
35.8071 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket, 14.0010-27, Stäubli Electrical Connectors

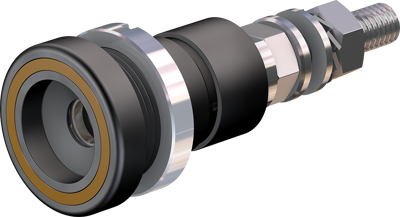

Model ID/B6AR-N-S safety panel receptacle is insulated socket, designed for flush mounting in housings and panels. Mating plugs with suitable locking devices can be snap-locked into the receptacle.

The internal connection is made with a threaded stud (M6) carrying nuts and washers for the connection of cables fitted with lugs.

Technical specifications
Connection threaded bolt
Version socket
Rated Voltage 600 V
Rated current 100 A
Touch safe Yes
diameter 6 mm
Installation diameter 18.5 mm
Colour brown
contact surface nickel-plated
Length 63 mm
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
