14.0034-21 | Stäubli Electrical Connectors

6 mm panel plug, threaded bolt, mounting Ø 18.5 mm, black, 14.0034-21

Order No.: 25F900
EAN: 4099889673555
MPN:
14.0034-21
ID/S6AR-N-B4S SCHWARZ
Series: Powerline
Stäubli Electrical Connectors

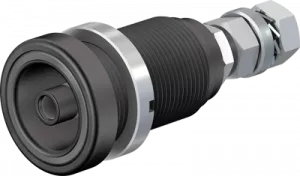

14.0034-21 Stäubli Electrical Connectors Laboratory Connectors Image 1

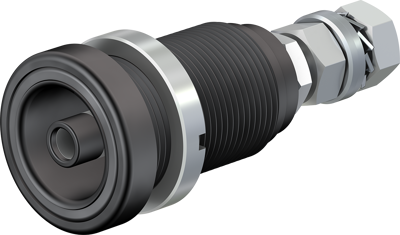

14.0034-21 Stäubli Electrical Connectors Laboratory Connectors Image 2

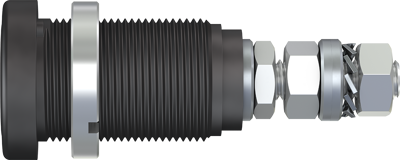

14.0034-21 Stäubli Electrical Connectors Laboratory Connectors Image 3
Image may differ
Unit Price (€ / pc.)
43.9705 € *
Available: 66 pcs.
Leadtime: 1 Week **
Total Price:
43.97 € *
Price list
Quantity
Price per unit*
1 pcs.
43.9705 €
5 pcs.
41.5310 €
10 pcs.
39.0796 €
25 pcs.
36.6282 €
50 pcs.
34.1887 €
*incl. VAT plus shipping costs
**Subject to prior sale

6 mm Panel plug, 14.0034-21, Stäubli Electrical Connectors

The 14.0034-21 safety flush-mounting plug is insulated plug designed for flush mounting in housings and panels. The plug is designed to mate with sockets KBT6AR-N.

The internal connection is made with an M6 threaded stud with nuts and washers.

Technical specifications
Connection threaded bolt
Version panel plug
Rated Voltage 600 V
Rated current 80 A
Touch safe Yes
diameter 6 mm
Installation diameter 18.5 mm
Colour black
contact surface nickel-plated
Length 58 mm
Stackable No
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
