15.0002-22 | Stäubli Electrical Connectors

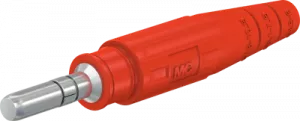

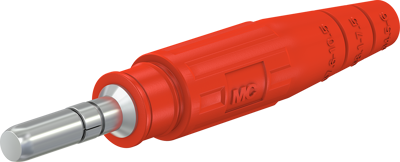

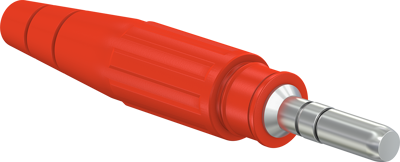

6 mm plug, crimp connection, 16 mm², red, 15.0002-22
Unit Price (€ / pc.)
28.7028 € *
Available: 41 pcs.
Leadtime: 1 Week **
Total Price:
28.70 € *
Price list
Quantity
Price per unit*
1 pcs.
28.7028 €
5 pcs.
27.1201 €
10 pcs.
25.5255 €
25 pcs.
23.9428 €
50 pcs.
22.3244 €
*incl. VAT plus shipping costs
**Subject to prior sale
6 mm Plug, 15.0002-22, Stäubli Electrical Connectors
The 15.0002-22 is plug with locking device. This plug has crimp sleeves for highly flexible conductor with cross-section of 16 mm².
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Stecker | |
| Bemessungsspannung | 600 V | |
| Bemessungsstrom | 100 A | |
| Berührungssicher | No | |
| Durchmesser | 6 mm | |
| Farbe | rot | |
| Länge | 89 mm | |
| Leiterquerschnitt | 16 mm² | |
| max. Kabeldurchmesser | 4.5 mm | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
