15.0010 | Stäubli Electrical Connectors
6 mm socket, crimp connection, 4.0-6.0 mm², yellow, 15.0010
Unit Price (€ / pc.)
19.4922 € *
Available: 210 pcs.
Next delivery: 87 pcs. on 2025-01-28
Leadtime: 7 Weeks **
Total Price:
19.49 € *
Price list
Quantity
Price per unit*
1 pcs.
19.4922 €
10 pcs.
17.1479 €
50 pcs.
15.9817 €
100 pcs.
15.2915 €
500 pcs.
14.5061 €
*incl. VAT plus shipping costs
**Subject to prior sale
6 mm Socket, 15.0010, Stäubli Electrical Connectors

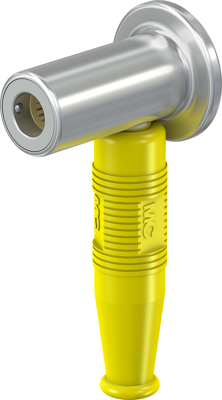

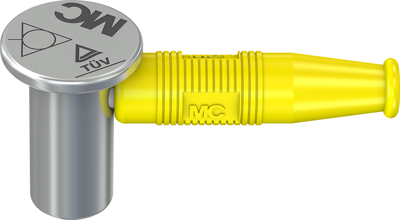

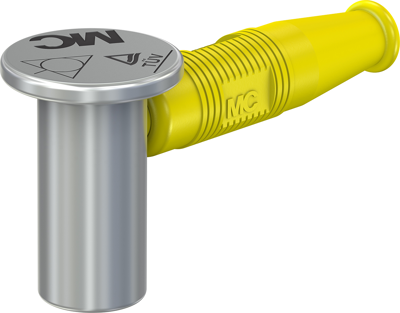

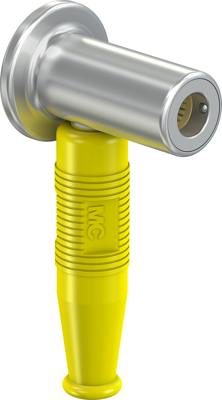

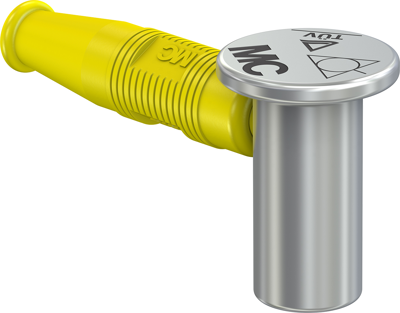

Right-angled socket for self-assembly of connecting leads for potential equalization. Socket made of nickel-plated brass with Multilam made of gold-plated, hard-drawn copper alloy. Crimp connection.
Technical specifications
| Connection | crimp connection | |
| Version | jack | |
| diameter | 6 mm | |
| Colour | yellow | |
| contact surface | nickel-plated | |
| Length | 56 mm | |
| Cable cross-section | 4.0-6.0 mm² | |
| Stackable | No |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
