15.0020-21 | Stäubli Electrical Connectors
6 mm socket, crimp connection, 16 mm², black, 15.0020-21
Unit Price (€ / pc.)
52.2767 € *
Available: 33 pcs.
Leadtime: 1 Week **
Total Price:
52.28 € *
Price list
Quantity
Price per unit*
1 pcs.
52.2767 €
5 pcs.
49.3731 €
10 pcs.
46.4695 €
25 pcs.
43.5659 €
50 pcs.
40.6504 €
*incl. VAT plus shipping costs
**Subject to prior sale

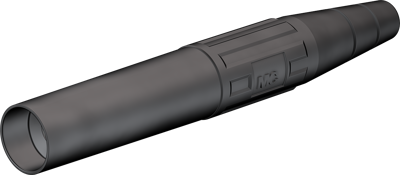

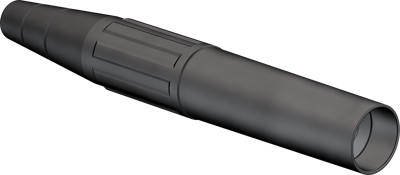

6 mm Socket, 15.0020-21, Stäubli Electrical Connectors
Safety socket is socket with locking devices and for crimping onto highly flexible conductor with cross-section of 16 mm². This safety socket is suitable for mating with either safety flush-mouting plugs. Used together with a flush-mounting plug it acts as an appliance connector and with plugs as a coupler.
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 600 V | |
| Bemessungsstrom | 100 A | |
| Berührungssicher | Yes | |
| Durchmesser | 6 mm | |
| Farbe | schwarz | |
| Kontaktoberfläche | vernickelt | |
| Länge | 100.5 mm | |
| Leiterquerschnitt | 16 mm² | |
| max. Kabeldurchmesser | 4.5 mm | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
