22.1039 | Stäubli Electrical Connectors
2 mm jack, solder connection, 0.5 mm², 22.1039
Order No.: 20F2550
EAN: 4099889667912
MPN:
22.1039
LS205-BF
Unit Price (€ / pc.)
3.0583 € *
Available: 3,620 pcs.
Next delivery: 3,900 pcs. on 2025-06-12
Leadtime: 20 Weeks **
Total Price:
3.06 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0583 €
10 pcs.
2.8798 €
100 pcs.
2.7013 €
500 pcs.
2.5228 €
1000 pcs.
2.3443 €
*incl. VAT plus shipping costs
**Subject to prior sale

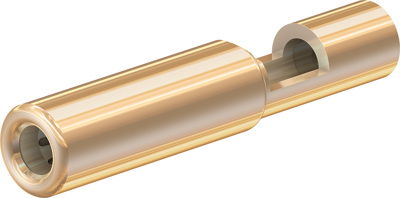

Jacks, 2.0 mm, type MC LS205-BF.
2.0 mm jack with spring-loaded contact lamella, made of turned gold-plated brass, solder connection up to 0.5 mm²; Contact lamellae: gold-plated hard-copper alloy. Rated voltage: 30 VAC/60 VDC. Rated current: max. 10 A.
Type: LS205–BF, bright jack part
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Kupplung | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 10 A | |
| Berührungssicher | No | |
| Durchmesser | 2 mm | |
| Kontaktoberfläche | vergoldet | |

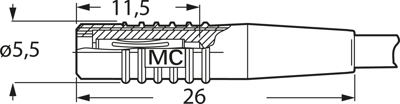

| Länge | 26 mm | |
| Leiterquerschnitt | 0,5 mm² |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
