22.1054 | Stäubli Electrical Connectors
4 mm panel plug, screw connection, mounting Ø 4 mm, 22.1054
Order No.: 12F160
EAN: 4099889664034
MPN:
22.1054
SA404
Unit Price (€ / pc.)
1.7731 € *
Available: 7,261 pcs.
Leadtime: 14 Weeks **
Total Price:
1.77 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7731 €
10 pcs.
1.5113 €
100 pcs.
1.3923 €
500 pcs.
1.3209 €
1000 pcs.
1.2138 €
*incl. VAT plus shipping costs
**Subject to prior sale

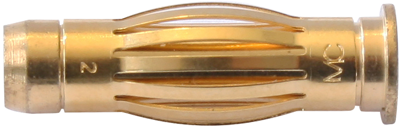

4 mm Panel plug, 22.1054, Stäubli Electrical Connectors
Ø 4 mm Multilam plug, M3 screw connection, material: CuZn, gold-plated, withdrawal force: appr. 8 N, rated current: 50 A (according to connecting method and cross-section), contact resistance: 0.3 mΩ, max. temperature: 150 °C.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Einbaustecker | |
| Bemessungsstrom | 50 A | |
| Berührungssicher | No | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 4 mm | |
| Kontaktoberfläche | vergoldet | |
| Länge | 16 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
