22.1055 | Stäubli Electrical Connectors

4 mm panel plug, screw connection, mounting Ø 4 mm, 22.1055

Order No.: 12F164
EAN: 4099889664065
MPN:
22.1055
SA405

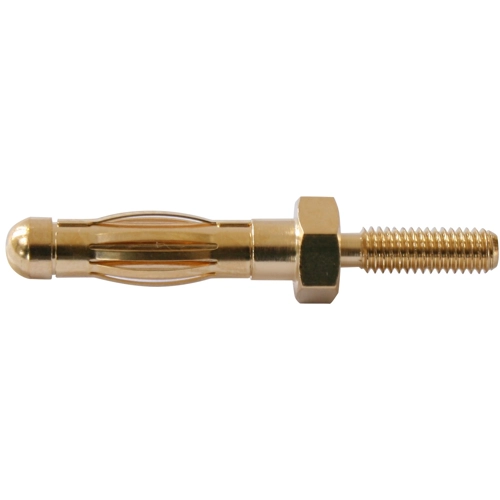

22.1055 Stäubli Electrical Connectors Laboratory Connectors Image 1
22.1055 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.2015 € *
Available: 1,486 pcs.
Leadtime: 6 Weeks **
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2015 €
10 pcs.
1.8802 €
100 pcs.
1.7255 €
500 pcs.
1.6422 €
1000 pcs.
1.4994 €
*incl. VAT plus shipping costs
**Subject to prior sale

4 mm Panel plug, 22.1055, Stäubli Electrical Connectors

Ø 4 mm Multilam plug, M3 screw connection, material: CuZn, gold-plated, withdrawal force: appr. 5 N, rated current: 50 A (according to connecting method and cross-section), contact resistance: 0.3 mΩ, max. temperature: 150 °C.

Technical specifications
Connection Schraubanschluss
Version Einbaustecker
Rated current 50 A
Touch safe No
diameter 4 mm
Installation diameter 4 mm
contact surface vergoldet
Length 30.5 mm
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
