22.2020-25 | Stäubli Electrical Connectors
2 mm insulating grommet, solder connection, 0.5 mm², green, 22.2020-25
No longer available from manufacturer, LTB: 12.31.2021
Unit Price (€ / pc.)
0.2880 € *
Available: 46 pcs.

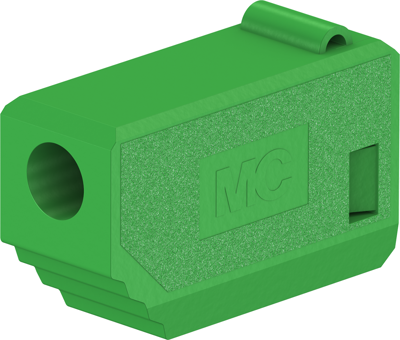

2 mm Insulating sleeve, 22.2020-25, Stäubli Electrical Connectors
Insulating sleeve for 2 mm plug LS2-F.
Technical specifications
| Connection | solder connection | |
| Version | insulating grommet | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 10 A | |
| diameter | 2 mm | |
| Colour | green | |
| Length | 12 mm | |
| Cable cross-section | 0.5 mm² | |
| max. Cable diameter | 2.3 mm | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
