22.2603-24 | Stäubli Electrical Connectors
1 mm jack, solder connection, 0.25 mm², yellow, 22.2603-24
Unit Price (€ / pc.)
2.1896 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.19 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1896 €
25 pcs.
2.0111 €
100 pcs.
1.8921 €
500 pcs.
1.7612 €
1000 pcs.
1.6541 €
*incl. VAT plus shipping costs
**Subject to prior sale

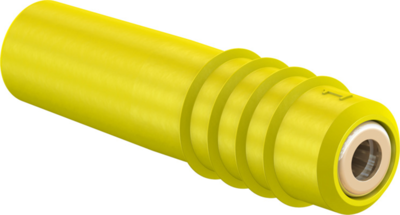

1 mm Jack, 22.2603-24, Stäubli Electrical Connectors
Ø 1 mm with spring-loaded MULTILAM for self-assembly of test leads.
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Kupplung | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 6 A | |
| Berührungssicher | No | |
| Durchmesser | 1 mm | |
| Farbe | gelb | |
| Kontaktoberfläche | vergoldet | |
| Länge | 12 mm | |
| Leiterquerschnitt | 0,25 mm² | |
| max. Kabeldurchmesser | 1.7 mm | |
| Stapelbar | No |
Download
Logistics
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
