22.2616-26 | Stäubli Electrical Connectors

2 mm plug, solder connection, 0.5 mm², purple, 22.2616-26

Order No.: 86F8847
EAN: 4099889678017
MPN:
22.2616-26
SLS205 VIOLETT
Series: SLS205
Stäubli Electrical Connectors

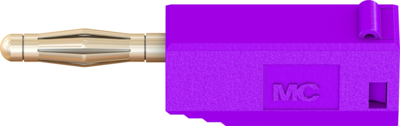

22.2616-26 Stäubli Electrical Connectors Laboratory Connectors Image 1

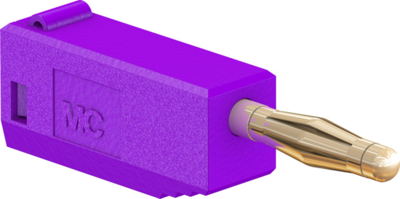

22.2616-26 Stäubli Electrical Connectors Laboratory Connectors Image 2

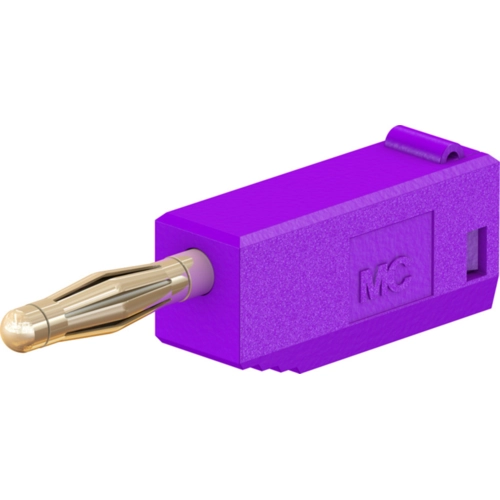

22.2616-26 Stäubli Electrical Connectors Laboratory Connectors Image 3
Image may differ
Print
Key Specification:
Version plug
diameter 2 mm
Colour purple
Connection solder connection
contact surface gold-plated
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.4637 € *
Available: 17 pcs.
Leadtime: 6 Weeks **
Total Price:
1.46 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4637 €
25 pcs.
1.2495 €
100 pcs.
1.1543 €
500 pcs.
1.1067 €
1000 pcs.
1.0115 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

2 mm Plug, 22.2616-26, Stäubli Electrical Connectors

Stackable, Ø 2 mm with spring-loaded MULTILAM for self-assembly of test leads.
Technical specifications
Connection solder connection
Version plug
Rated Voltage 30 VAC/60 VDC
Rated current 10 A
Touch safe No
diameter 2 mm
Colour purple
contact surface gold-plated
Length 23 mm
Cable cross-section 0.5 mm²
max. Cable diameter 2.3 mm
Stackable Yes
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
