22.2618-21 | Stäubli Electrical Connectors

2 mm plug, solder connection, 0.5 mm², black, 22.2618-21

Order No.: 86F8854
EAN: 4099889678086
MPN:
22.2618-21
SLS205-L SCHWARZ
Series: SLS205-L
Stäubli Electrical Connectors
22.2618-21 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Available: 75 pcs.
Leadtime: 3 Weeks **
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3209 €
25 pcs.
1.1186 €
100 pcs.
1.0353 €
500 pcs.
0.9996 €
1000 pcs.
0.9163 €
*incl. VAT plus shipping costs
**Subject to prior sale

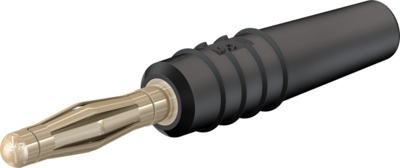

2 mm Plug, 22.2618-21, Stäubli Electrical Connectors

In-line, Ø 2 mm with spring-loaded MULTILAM for self-assembly of test leads.

Technical specifications
Connection solder connection
Version plug
Rated Voltage 30 VAC/60 VDC
Rated current 10 A
Touch safe No
diameter 2 mm
Colour black
contact surface gold-plated
Length 27 mm
Cable cross-section 0.5 mm²
max. Cable diameter 2.1 mm
Stackable No
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
