22.2626-23 | Stäubli Electrical Connectors

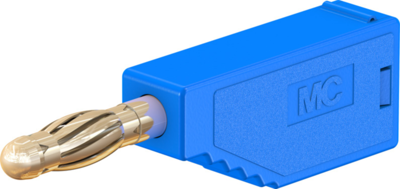

4 mm plug, solder connection, 1.0 mm², blue, 22.2626-23

Order No.: 86F8899
EAN: 4099889678536
MPN:
22.2626-23
SLS410 BLAU
Series: SLS410
Stäubli Electrical Connectors
22.2626-23 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:

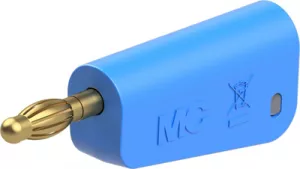

4 mm plug, solder connection, 1.0 mm², blue, 64.1039-23
4 mm plug, solder connection, 1.0 mm², blue, 64.1039-23
Order No.: 22F7013
Manufacturer: Stäubli Electrical Connectors
per pc. 2.4038 € *
*incl. VAT plus shipping costs

4 mm Plug, 22.2626-23, Stäubli Electrical Connectors

Stackable, Ø 4 mm with spring-loaded MULTILAM for self-assembly of test leads.

Technical specifications
Connection solder connection
Version plug
Rated Voltage 30 VAC/60 VDC
Rated current 19 A
Touch safe No
diameter 4 mm
Colour blue
contact surface gold-plated
Length 47 mm
Cable cross-section 1.0 mm²
max. Cable diameter 3 mm
Stackable Yes
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Replacement

Order No.:

 22F7013

Manufacturer SKU:

 64.1039-23



Available: 0 pcs. Next delivery: 400 pcs. on 2025-02-13 Leadtime: 5 Weeks **
2.40 € per pc. *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.4038 €
10 pcs.
2.0468 €
100 pcs.
1.8921 €
500 pcs.
1.8207 €
1000 pcs.
1.6541 €
