22.2626-27 | Stäubli Electrical Connectors

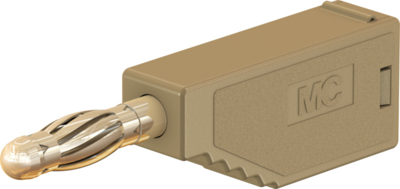

4 mm plug, solder connection, 1.0 mm², brown, 22.2626-27

Order No.: 86F8903
EAN: 4099889678574
MPN:
22.2626-27
SLS410 BRAUN
Series: SLS410
Stäubli Electrical Connectors
22.2626-27 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
4 mm plug, solder connection, 1.0 mm², brown, 64.1039-27
4 mm plug, solder connection, 1.0 mm², brown, 64.1039-27
Order No.: 22F7017
Manufacturer: Stäubli Electrical Connectors
per pc. 2.4038 € *
*incl. VAT plus shipping costs

4 mm Plug, 22.2626-27, Stäubli Electrical Connectors

Stackable, Ø 4 mm with spring-loaded MULTILAM for self-assembly of test leads.

Technical specifications
Connection solder connection
Version plug
Rated Voltage 30 VAC/60 VDC
Rated current 19 A
Touch safe No
diameter 4 mm
Colour brown
contact surface gold-plated
Length 47 mm
Cable cross-section 1.0 mm²
max. Cable diameter 3 mm
Stackable Yes
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Replacement

Order No.:

 22F7017

Manufacturer SKU:

 64.1039-27



Available: 88 pcs. Leadtime: 5 Weeks **
2.40 € per pc. *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.4038 €
10 pcs.
2.0468 €
100 pcs.
1.8921 €
500 pcs.
1.8207 €
1000 pcs.
1.6541 €
