22.2626-28 | Stäubli Electrical Connectors
4 mm plug, solder connection, 1.0 mm², gray, 22.2626-28
As an alternative, we recommend the following item:
4 mm plug, solder connection, 1.0 mm², gray, 64.1039-28
Order No.: 22F7018
Manufacturer: Stäubli Electrical Connectors
per pc. 2.4514 € *
*incl. VAT plus shipping costs

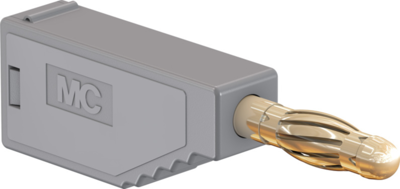

4 mm Plug, 22.2626-28, Stäubli Electrical Connectors
Stackable, Ø 4 mm with spring-loaded MULTILAM for self-assembly of test leads.
Technical specifications
| Connection | Lötanschluss | |
| Version | Stecker | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 19 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Colour | grau | |
| contact surface | vergoldet | |
| Length | 47 mm | |
| Cable cross-section | 1,0 mm² | |
| max. Cable diameter | 3 mm | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Beutel mit 100 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
