22.2631-24 | Stäubli Electrical Connectors
4 mm plug, solder connection, 2.5 mm², yellow, 22.2631-24
As an alternative, we recommend the following item:
4 mm plug, solder connection, 2.5 mm², yellow, 64.1043-24
Order No.: 22F7054
Manufacturer: Stäubli Electrical Connectors
per pc. 2.4038 € *
*incl. VAT plus shipping costs

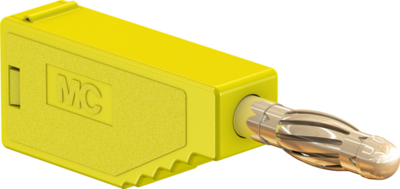

4 mm Plug, 22.2631-24, Stäubli Electrical Connectors
Stackable, Ø 4 mm plugs with spring-loaded MULTILAM for self assembly of test leads.
Technical specifications
| Connection | solder connection | |
| Version | plug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 32 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Colour | yellow | |
| contact surface | gold-plated | |
| Length | 47 mm | |
| Cable cross-section | 2.5 mm² | |
| max. Cable diameter | 3.9 mm | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
