22.2663-23 | Stäubli Electrical Connectors
4 mm plug, solder connection, 2.5 mm², CAT II, blue, 22.2663-23
Unit Price (€ / pc.)
2.7727 € *
Available: 64 pcs.
Leadtime: On Request **
Total Price:
2.77 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7727 €
25 pcs.
2.4395 €
100 pcs.
2.1420 €
500 pcs.
2.0587 €
1000 pcs.
1.9278 €
*incl. VAT plus shipping costs
**Subject to prior sale

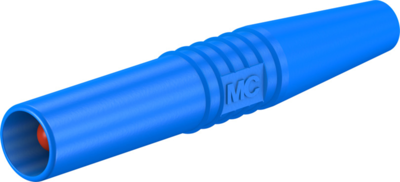

4 mm Plug, 22.2663-23, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. With rigid insulating sleeve.
Technical specifications
| Connection | solder connection | |
| Version | plug | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Colour | blue | |
| contact surface | gold-plated | |
| Length | 50 mm | |
| Cable cross-section | 2.5 mm² | |
| max. Cable diameter | 4.1 mm | |
| Rated category | CAT II | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
