22.3006-21 | Stäubli Electrical Connectors

4 mm plug, clamp connection, 2.5 mm², black, 22.3006-21

Order No.: 12F126
EAN: 4099889663983
MPN:
22.3006-21
KLS4 SCHWARZ
Series: KLS4
Stäubli Electrical Connectors
22.3006-21 Stäubli Electrical Connectors Laboratory Connectors Image 1
22.3006-21 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.9020 € *
Available: 50 pcs.
Leadtime: 4 Weeks **
Total Price:
6.90 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9020 €
25 pcs.
6.0690 €
100 pcs.
5.7477 €
500 pcs.
5.5454 €
1000 pcs.
5.2003 €
*incl. VAT plus shipping costs
**Subject to prior sale

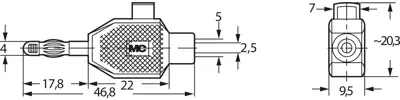

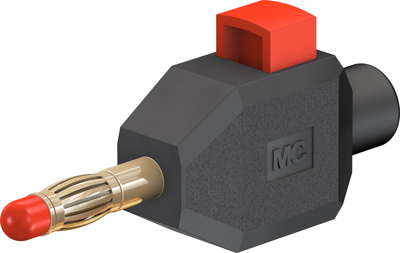

4 mm Plug, 22.3006-21, Stäubli Electrical Connectors

Ø 4 mm plug with spring-loaded Multilam for clamp-connecting stranded wires. Clamp connection.

Technical specifications
Connection clamp connection
Version plug
Rated Voltage 30 VAC/60 VDC
Rated current 10 A
Touch safe No
diameter 4 mm
Colour black
contact surface nickel-plated
Length 46 mm
Cable cross-section 2.5 mm²
Logistics
Country of origin CH
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
