22.6012 | Stäubli Electrical Connectors

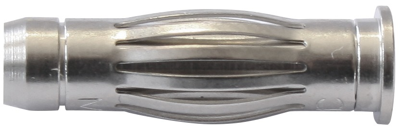

4 mm panel plug, screw connection, mounting Ø 5 mm, silver, 22.6012
Order No.: 12F161
EAN: 4099889664041
MPN:
22.6012
SA404N
Unit Price (€ / pc.)
1.3685 € *
Available: 278 pcs.
Leadtime: On Request **
Total Price:
1.37 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3685 €
10 pcs.
1.2019 €
100 pcs.
1.0472 €
500 pcs.
0.9163 €
1000 pcs.
0.8330 €
*incl. VAT plus shipping costs
**Subject to prior sale
4 mm Panel plug, 22.6012, Stäubli Electrical Connectors
Ø 4 mm Multilam plug, M3 screw connection, material: CuZn, nickel-plated, withdrawal force: appr. 12 N, rated current: 50 A (according to connecting method and cross-section), contact resistance: 0.8 mΩ, max. temperature: 150 °C.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Einbaustecker | |
| Bemessungsstrom | 50 A | |
| Berührungssicher | No | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 5 mm | |
| Farbe | silber | |
| Kontaktoberfläche | vernickelt | |
| Länge | 16 mm | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
