23.0030-20 | Stäubli Electrical Connectors

2 mm socket, flat plug connection, mounting Ø 6.4 mm, yellow/green, 23.0030-20

Order No.: 25F339
EAN: 4099889672817
MPN:
23.0030-20
LB-I2R GRÜN/GELB
Series: LB-I2R
Stäubli Electrical Connectors

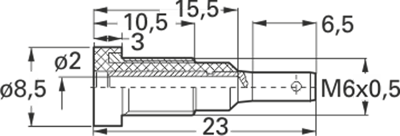

23.0030-20 Stäubli Electrical Connectors Laboratory Connectors Image 1

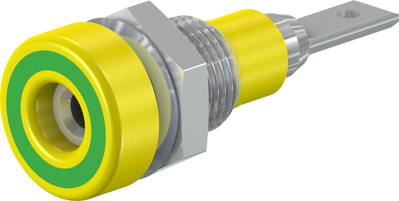

23.0030-20 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Print
Key Specification:
Version socket
diameter 2 mm
Colour yellow/green
Connection flat plug connection
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
3.1297 € *
Available: 40 pcs.
Leadtime: On Request **
Total Price:
3.13 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1297 €
10 pcs.
2.7489 €
50 pcs.
2.4157 €
100 pcs.
2.3205 €
500 pcs.
2.1301 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Accessory
Variations

2 mm Socket, 23.0030-20, Stäubli Electrical Connectors

Insulated, Ø 2 mm rigid socket. Machined brass. Metal thread jacket on the insulation. The socket can be screw-mounted in predrilled panels. Flat connecting tab 2.8 mm x 0.8 mm.
Technical specifications
Connection flat plug connection
Version socket
Rated Voltage 30 VAC/60 VDC
Rated current 10 A
Touch safe No
diameter 2 mm
Installation diameter 6.4 mm
Colour yellow/green
Length 22 mm
Stackable No
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
