23.0040-20 | Stäubli Electrical Connectors
2 mm socket, flat plug connection, mounting Ø 6.4 mm, yellow/green, 23.0040-20
Unit Price (€ / pc.)
3.3201 € *
Available: 50 pcs.
Leadtime: On Request **
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
2.9155 €
50 pcs.
2.5585 €
100 pcs.
2.4633 €
500 pcs.
2.2610 €
*incl. VAT plus shipping costs
**Subject to prior sale

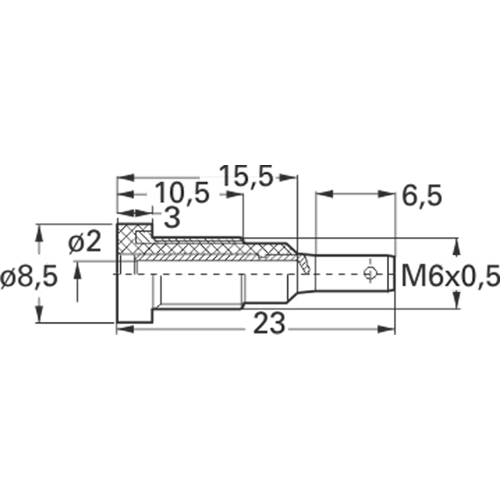

Panel sockets, 2.0 mm, type MC LB-I2-R.
Mates 2.0 mm plug pins, bushing mount with metal threaded sleeve and round nut; Insulation: PA. Contact: lathed brass with optalloy finish, for 2.8 x 0.8 mm tab terminals. Rated voltage: 30 VAC/60 VDC. Rated current: max. 10 A.
Type: LB - I2 - R, green/yellow
Technical specifications
| Connection | flat plug connection | |
| Version | socket | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 10 A | |
| Touch safe | No | |
| diameter | 2 mm | |
| Installation diameter | 6.4 mm | |
| Colour | yellow/green | |
| Length | 22 mm | |
| Stackable | No |
Download
Logistics
| Customs tariff number | 85366990 |
| Original Packaging | Bag with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
