23.0050-24 | Stäubli Electrical Connectors

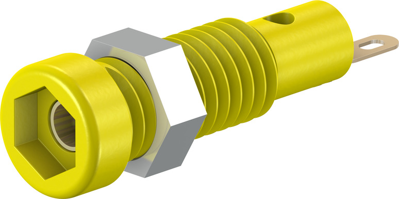

2 mm socket, solder connection, mounting Ø 5.3 mm, yellow, 23.0050-24
Unit Price (€ / pc.)
2.1658 € *
Available: 51 pcs.
Leadtime: On Request **
Total Price:
2.17 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1658 €
50 pcs.
1.8445 €
100 pcs.
1.7612 €
500 pcs.
1.7017 €
1000 pcs.
1.5232 €
*incl. VAT plus shipping costs
**Subject to prior sale
2 mm Socket, 23.0050-24, Stäubli Electrical Connectors
Insulated Ø 2 mm socket with spring-loaded Multilam. The socket can be screw-mounted in predrilled panels.
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 10 A | |
| Berührungssicher | No | |
| Durchmesser | 2 mm | |
| Einbaudurchmesser | 5.3 mm | |
| Farbe | gelb | |
| Kontaktoberfläche | vergoldet | |
| Länge | 23.3 mm | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
