23.0050-25 | Stäubli Electrical Connectors
2 mm socket, solder connection, mounting Ø 5.3 mm, green, 23.0050-25
Unit Price (€ / pc.)
1.8445 € *
Available: 43 pcs.
Leadtime: 6 Weeks **
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8445 €
10 pcs.
1.7136 €
50 pcs.
1.5827 €
100 pcs.
1.4399 €
500 pcs.
1.2971 €
*incl. VAT plus shipping costs
**Subject to prior sale

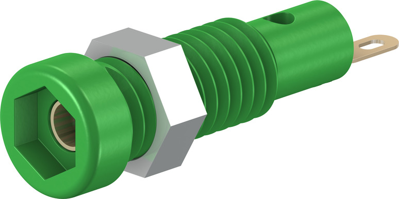

4 mm Socket, 23.0050-25, Stäubli Electrical Connectors
Insulated, Ø 2 mm socket with spring-loaded Multilam. The socket can be screw-mounted in predrilled panels.
Technical specifications
| Connection | solder connection | |
| Version | socket | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 10 A | |
| Touch safe | No | |
| diameter | 2 mm | |
| Installation diameter | 5.3 mm | |
| Colour | green | |
| contact surface | gold-plated | |
| Length | 23.3 mm | |
| Stackable | No |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
