23.0060-23 | Stäubli Electrical Connectors

2 mm socket, flat plug connection, mounting Ø 6.4 mm, blue, 23.0060-23

Order No.: 22F318
EAN: 4099889669947
MPN:
23.0060-23
LB-IF2R BLAU
Series: LB-IF2R
Stäubli Electrical Connectors

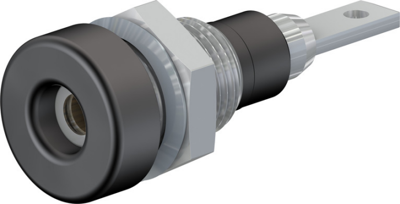

23.0060-23 Stäubli Electrical Connectors Laboratory Connectors Image 1

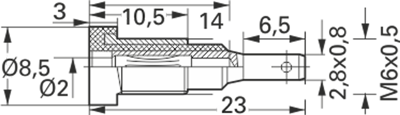

23.0060-23 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.3197 € *
Available: 69 pcs.
Leadtime: On Request **
Total Price:
4.32 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3197 €
50 pcs.
3.7961 €
100 pcs.
3.3320 €
500 pcs.
3.2011 €
1000 pcs.
2.9393 €
*incl. VAT plus shipping costs
**Subject to prior sale

2 mm Socket, 23.0060-23, Stäubli Electrical Connectors

Insulated Ø 2 mm socket with spring-loaded Multilam. Machined brass. Metal thread jacket on the insulation. The socket can be screw-mounted in predrilled panels. Flat connecting tab 2.8 mm x 0.8 mm.

Technical specifications
Connection flat plug connection
Version socket
Rated Voltage 30 VAC/60 VDC
Rated current 10 A
Touch safe No
diameter 2 mm
Installation diameter 6.4 mm
Colour blue
Length 23 mm
Stackable No
Logistics
Country of origin CH
Customs tariff number 85369010
Original Packaging Bag with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
