23.0190-26 | Stäubli Electrical Connectors

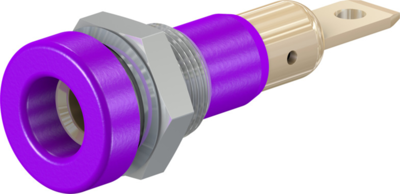

4 mm socket, flat plug connection, mounting Ø 8.3 mm, purple, 23.0190-26

Order No.: 86F8002
EAN: 4099889676105
MPN:
23.0190-26
LB-I4R-A VIOLETT
Series: LB-I4R-A
Stäubli Electrical Connectors
23.0190-26 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:

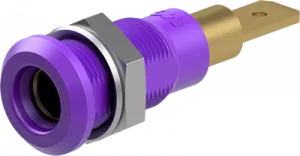

4 mm socket, plug-in connection, mounting Ø 8.1 mm, purple, 64.3040-26
4 mm socket, plug-in connection, mounting Ø 8.1 mm, purple, 64.3040-26
Order No.: 22F7216
Manufacturer: Stäubli Electrical Connectors
per pc. 1.5827 € *
*incl. VAT plus shipping costs

4 mm Socket, 23.0190-26, Stäubli Electrical Connectors

Insulated, Ø 4 mm, rigid. Machined brass. Metal thread jacket on the insulation. The socket can be screw-mounted in predrilled panels. Flat connecting tab 4.8 mm x 0.8 mm.

Technical specifications
Connection flat plug connection
Version socket
Rated Voltage 30 VAC/60 VDC
Rated current 25 A
Touch safe No
diameter 4 mm
Installation diameter 8.3 mm
Colour purple
contact surface gold-plated
Length 31.5 mm
Stackable No
Logistics
Customs tariff number 85369010
Original Packaging Bag with 20 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
