23.1010-23 | Stäubli Electrical Connectors
1 mm socket, solder connection, mounting Ø 2.7 mm, blue, 23.1010-23
Unit Price (€ / pc.)
2.8917 € *
Available: 45 pcs.
Leadtime: 2 Weeks **
Total Price:
2.89 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8917 €
25 pcs.
2.5466 €
100 pcs.
2.4157 €
500 pcs.
2.3324 €
1000 pcs.
2.1896 €
*incl. VAT plus shipping costs
**Subject to prior sale

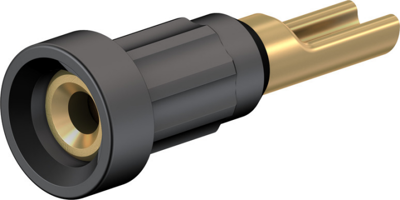

1 mm Socket, 23.1010-23, Stäubli Electrical Connectors
Insulated, Ø 1 mm, spring-loaded with MULTILAM. Brass. The socket is pressed into predrilled panels.

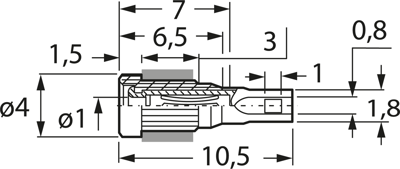

Technical specifications
| Connection | solder connection | |
| Version | press-in socket | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 20 A | |
| Touch safe | No | |
| diameter | 1 mm | |
| Installation diameter | 2.7 mm | |
| Colour | blue | |
| contact surface | gold-plated | |
| Length | 10.5 mm | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
