23.1010-26 | Stäubli Electrical Connectors

1 mm socket, solder connection, mounting Ø 2.7 mm, purple, 23.1010-26

Order No.: 86F8141
EAN: 4099889676495
MPN:
23.1010-26
EB1 VIOLETT
Series: EB1
Stäubli Electrical Connectors

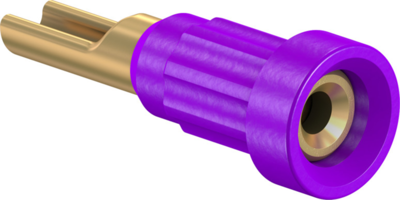

23.1010-26 Stäubli Electrical Connectors Laboratory Connectors Image 1

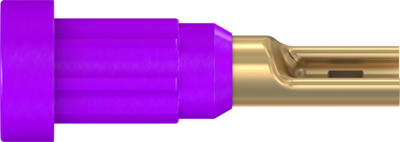

23.1010-26 Stäubli Electrical Connectors Laboratory Connectors Image 2

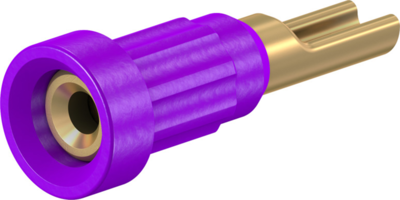

23.1010-26 Stäubli Electrical Connectors Laboratory Connectors Image 3
Image may differ
Unit Price (€ / pc.)
2.9750 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.98 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9750 €
25 pcs.
2.6180 €
100 pcs.
2.4871 €
500 pcs.
2.4038 €
1000 pcs.
2.2610 €
*incl. VAT plus shipping costs
**Subject to prior sale

1 mm Socket, 23.1010-26, Stäubli Electrical Connectors

Insulated, Ø 1 mm, spring-loaded with MULTILAM. Brass. The socket is pressed into predrilled panels.

Technical specifications
Connection solder connection
Version press-in socket
Rated Voltage 30 VAC/60 VDC
Rated current 20 A
Touch safe No
diameter 1 mm
Installation diameter 2.7 mm
Colour purple
contact surface gold-plated
Length 10.5 mm
Stackable No
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
