23.1011-28 | Stäubli Electrical Connectors

2 mm socket, flat plug connection, mounting Ø 4.9 mm, gray, 23.1011-28

Order No.: 86F8148
EAN: 4099889676563
MPN:
23.1011-28
EB2 GRAU
Series: EB2
Stäubli Electrical Connectors

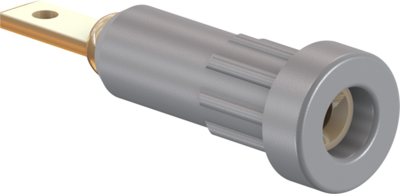

23.1011-28 Stäubli Electrical Connectors Laboratory Connectors Image 1

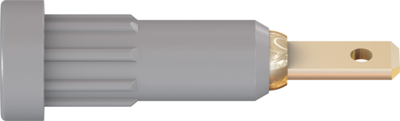

23.1011-28 Stäubli Electrical Connectors Laboratory Connectors Image 2

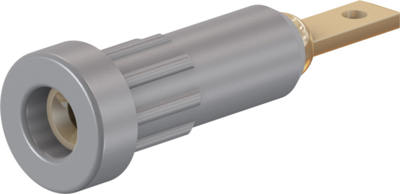

23.1011-28 Stäubli Electrical Connectors Laboratory Connectors Image 3
Image may differ
Unit Price (€ / pc.)
1.2019 € *
Available: 4 pcs.
Leadtime: On Request **
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
25 pcs.
1.1067 €
100 pcs.
0.9996 €
500 pcs.
0.9044 €
1000 pcs.
0.8330 €
*incl. VAT plus shipping costs
**Subject to prior sale

2 mm Socket, 23.1011-28, Stäubli Electrical Connectors

Insulated, Ø 2 mm rigid socket made of machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Connection: Flat connecting tab 2.8 mm x 0.8 mm.

Technical specifications
Connection flat plug connection
Version press-in socket
Rated Voltage 30 VAC/60 VDC
Rated current 10 A
Touch safe No
diameter 2 mm
Installation diameter 4.9 mm
Colour gray
contact surface gold-plated
Length 23 mm
Stackable No
Logistics
Country of origin CH
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
