23.1012-27 | Stäubli Electrical Connectors

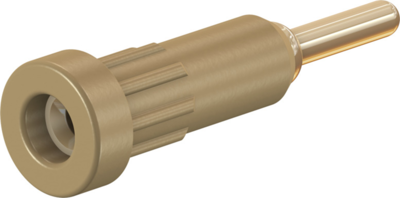

2 mm socket, round plug connection, mounting Ø 4.9 mm, brown, 23.1012-27
Unit Price (€ / pc.)
1.1424 € *
Available: 19 pcs.
Leadtime: On Request **
Total Price:
1.14 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1424 €
25 pcs.
1.0472 €
100 pcs.
0.9520 €
500 pcs.
0.8449 €
1000 pcs.
0.7973 €
*incl. VAT plus shipping costs
**Subject to prior sale
2 mm Socket, 23.1012-27, Stäubli Electrical Connectors
Insulated Ø 2 mm rigid made of machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Connection: Round connecting pin Ø 1.9 mm.
Technical specifications
| Connection | round plug connection | |
| Version | press-in socket | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 10 A | |
| Touch safe | No | |
| diameter | 2 mm | |
| Installation diameter | 4.9 mm | |
| Colour | brown | |
| contact surface | gold-plated | |
| Length | 24.5 mm | |
| Stackable | No |
Download
Logistics
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
