23.3010-29 | Stäubli Electrical Connectors
4 mm socket, round plug connection, mounting Ø 12.2 mm, CAT III, white, 23.3010-29
Unit Price (€ / pc.)
2.0944 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.09 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0944 €
20 pcs.
1.7731 €
100 pcs.
1.6065 €
500 pcs.
1.5232 €
1000 pcs.
1.3923 €
*incl. VAT plus shipping costs
**Subject to prior sale

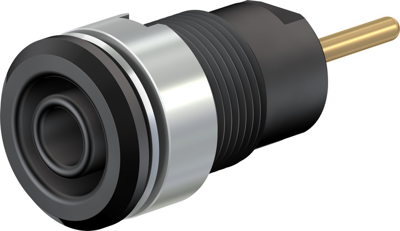

4 mm Socket, 23.3010-29, Stäubli Electrical Connectors
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into pre-drilled panels of plastic, metal, etc.Connection: Round connecting pin Ø 1.9 mm
Technical specifications
| Anschluss | Rundsteckanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 24 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 12.2 mm | |
| Farbe | weiß | |
| Kontaktoberfläche | vergoldet | |
| Länge | 35 mm | |
| Messkategorie | CAT III | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85472000 |
| Originalverpackung | Beutel mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
