23.3070-27 | Stäubli Electrical Connectors
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, brown, 23.3070-27
Unit Price (€ / pc.)
1.7374 € *
Available: 61 pcs.
Leadtime: On Request **
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7374 €
20 pcs.
1.4756 €
100 pcs.
1.3447 €
500 pcs.
1.2733 €
1000 pcs.
1.1543 €
*incl. VAT plus shipping costs
**Subject to prior sale

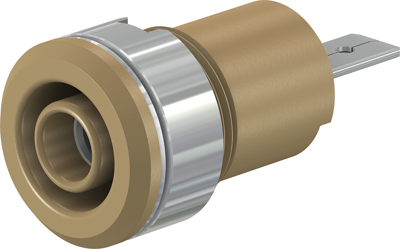

4 mm Socket, 23.3070-27, Stäubli Electrical Connectors

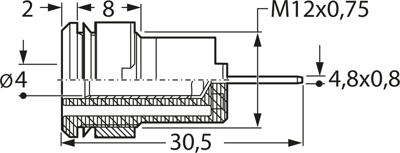

Insulated, Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Brass sheet. The socket is screwed into predrilled panels of plastic, metal etc. Flat connecting tab 4.8 mm x 0.8 mm.
Technical specifications
| Connection | flat plug connection | |
| Version | socket | |
| Rated Voltage | 1000 V | |
| Rated current | 24 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Installation diameter | 12.2 mm | |
| Colour | brown | |
| contact surface | nickel-plated | |
| Length | 30.5 mm | |
| Rated category | CAT III | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
