23.3120-23 | Stäubli Electrical Connectors
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, blue, 23.3120-23
Unit Price (€ / pc.)
1.7493 € *
Available: 14 pcs.
Leadtime: 1 Week **
Total Price:
1.75 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7493 €
20 pcs.
1.4756 €
100 pcs.
1.3447 €
500 pcs.
1.2852 €
1000 pcs.
1.1662 €
*incl. VAT plus shipping costs
**Subject to prior sale

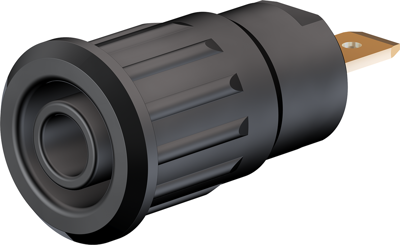

4 mm Socket, 23.3120-23, Stäubli Electrical Connectors

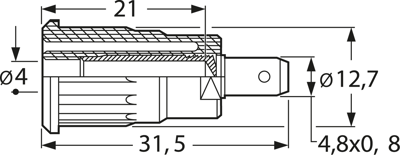

Insulated Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Flat connecting tab 4.8 mm x 0.8 mm.
Technical specifications
| Anschluss | Flachsteckanschluss | |
| Ausführung | Einpressbuchse | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 24 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 12.2 mm | |
| Farbe | blau | |
| Kontaktoberfläche | vergoldet | |
| Länge | 31.5 mm | |
| Messkategorie | CAT III | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
