23.3120-25 | Stäubli Electrical Connectors

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, green, 23.3120-25

Order No.: 25F2718
EAN: 4099889672312
MPN:
23.3120-25
SEB4-F GRÜN
Series: SEB4-F
Stäubli Electrical Connectors

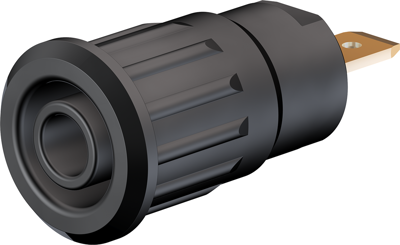

23.3120-25 Stäubli Electrical Connectors Laboratory Connectors Image 1

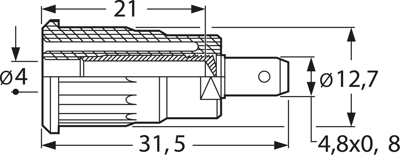

23.3120-25 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.7969 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
1.80 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7969 €
20 pcs.
1.5351 €
100 pcs.
1.3804 €
500 pcs.
1.3209 €
1000 pcs.
1.2019 €
*incl. VAT plus shipping costs
**Subject to prior sale

4 mm Socket, 23.3120-25, Stäubli Electrical Connectors

Insulated Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Flat connecting tab 4.8 mm x 0.8 mm.

Technical specifications
Anschluss Flachsteckanschluss
Ausführung Einpressbuchse
Bemessungsspannung 1000 V
Bemessungsstrom 24 A
Berührungssicher Yes
Durchmesser 4 mm
Einbaudurchmesser 12.2 mm
Farbe grün
Kontaktoberfläche vergoldet
Länge 31.5 mm
Messkategorie CAT III
Stapelbar No
Logistics
Ursprungsland CH
Zolltarifnummer 85366990
Originalverpackung Beutel mit 20 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
