23.3150-23 | Stäubli Electrical Connectors
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, blue, 23.3150-23
Unit Price (€ / pc.)
2.2967 € *
Available: 13 pcs.
Leadtime: 1 Week **
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
20 pcs.
1.9516 €
100 pcs.
1.7612 €
500 pcs.
1.6779 €
*incl. VAT plus shipping costs
**Subject to prior sale

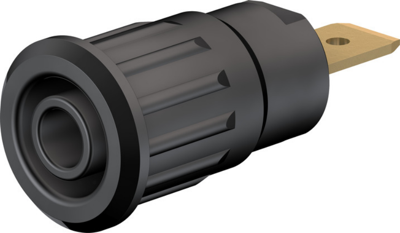

4 mm Socket, 23.3150-23, Stäubli Electrical Connectors
Insulated, Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Connection: Flat connecting tab 6.3 mm x 0.8 mm.
Technical specifications
| Connection | Flachsteckanschluss | |
| Version | Einpressbuchse | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Installation diameter | 12.2 mm | |
| Colour | blau | |
| contact surface | vergoldet | |
| Length | 33 mm | |
| Rated category | CAT III | |
| Stackable | No |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
| Original Packaging | Beutel mit 20 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
