49.7043-25 | Stäubli Electrical Connectors

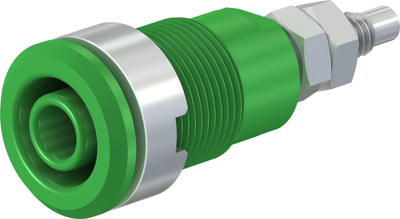

4 mm socket, threaded bolt, mounting Ø 12.2 mm, CAT III, green, 49.7043-25
Unit Price (€ / pc.)
1.9040 € *
Available: 1 pcs.
Next delivery: 20 pcs. on 2025-01-09
Leadtime: 6 Weeks **
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9040 €
20 pcs.
1.6184 €
100 pcs.
1.4637 €
500 pcs.
1.3804 €
*incl. VAT plus shipping costs
**Subject to prior sale
4 mm Socket, 49.7043-25, Stäubli Electrical Connectors
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into pre-drilled panels of plastic, metal, etc. Connection: Threaded bolt M4 and soldering hole.
Technical specifications
| Connection | threaded bolt | |
| Version | socket | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Installation diameter | 12.2 mm | |
| Colour | green | |
| contact surface | nickel-plated | |
| Length | 38.5 mm | |
| Rated category | CAT III | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
