49.7044-20 | Stäubli Electrical Connectors

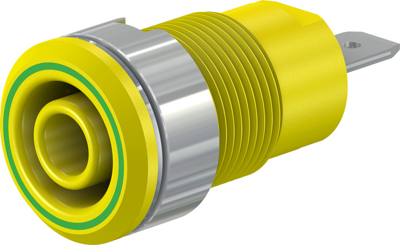

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, yellow/green, 49.7044-20
Unit Price (€ / pc.)
1.8088 € *
Available: 33 pcs.
Leadtime: 2 Weeks **
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
20 pcs.
1.5470 €
100 pcs.
1.3923 €
500 pcs.
1.3209 €
1000 pcs.
1.2019 €
*incl. VAT plus shipping costs
**Subject to prior sale
4 mm Socket, 49.7044-20, Stäubli Electrical Connectors
Insulated Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into predrilled panels of plastic, metal etc. Flat connecting tab 4.8 mm x 0.8 mm.
Technical specifications
| Anschluss | Flachsteckanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 24 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 12.2 mm | |
| Farbe | gelb/grün | |
| Kontaktoberfläche | vernickelt | |
| Länge | 31.5 mm | |
| Messkategorie | CAT III | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
