49.7049-26 | Stäubli Electrical Connectors
4 mm socket, solder connection, mounting Ø 12.2 mm, CAT III, purple, 49.7049-26
Unit Price (€ / pc.)
1.4161 € *
Available: 18 pcs.
Leadtime: 4 Weeks **
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4161 €
20 pcs.
1.2019 €
100 pcs.
1.0948 €
500 pcs.
1.0353 €
1000 pcs.
0.9520 €
*incl. VAT plus shipping costs
**Subject to prior sale

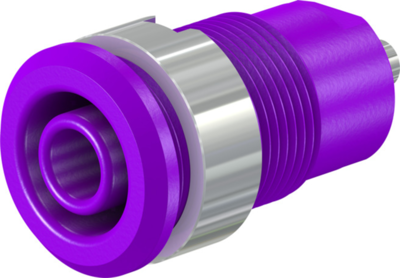

4 mm Socket, 49.7049-26, Stäubli Electrical Connectors
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into pre-drilled panels of plastic, metal, etc. Connection: Solder connection.
Technical specifications
| Connection | solder connection | |
| Version | socket | |
| Rated Voltage | 1000 V | |
| Rated current | 24 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Installation diameter | 12.2 mm | |
| Colour | purple | |
| contact surface | nickel-plated | |
| Length | 27 mm | |
| Rated category | CAT III | |
| Stackable | No |
Download
Logistics
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
