49.7073-22 | Stäubli Electrical Connectors

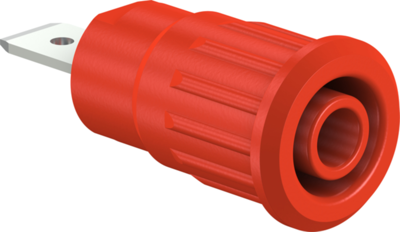

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, CAT IV, red, 49.7073-22
Unit Price (€ / pc.)
1.6660 € *
Available: 13 pcs.
Leadtime: On Request **
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
20 pcs.
1.4042 €
100 pcs.
1.2852 €
500 pcs.
1.2019 €
1000 pcs.
1.1067 €
*incl. VAT plus shipping costs
**Subject to prior sale
4 mm Socket, 49.7073-22, Stäubli Electrical Connectors
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into pre-drilled panels of plastic, metal, etc. Connection: Flat connecting tab 6.3 mm × 0.8 mm.
Technical specifications
| Anschluss | Flachsteckanschluss | |
| Ausführung | Einpressbuchse | |
| Bemessungsspannung | 1000 V/600 V | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 12.2 mm | |
| Farbe | rot | |
| Kontaktoberfläche | vernickelt | |
| Länge | 33 mm | |
| Messkategorie | CAT III/CAT IV | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
