49.7073-27 | Stäubli Electrical Connectors

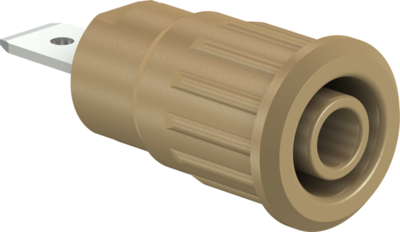

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, CAT IV, brown, 49.7073-27

Order No.: 86F8761
EAN: 4099889677546
MPN:
49.7073-27
SEB4-F6,3N BRAUN
Series: SEB4-F6,3/N
49.7073-27 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.7136 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
20 pcs.
1.4399 €
100 pcs.
1.3209 €
500 pcs.
1.2376 €
1000 pcs.
1.1424 €
*incl. VAT plus shipping costs
**Subject to prior sale

4 mm Socket, 49.7073-27, Stäubli Electrical Connectors

Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is pressed into pre-drilled panels of plastic, metal, etc. Connection: Flat connecting tab 6.3 mm × 0.8 mm.

Technical specifications
Anschluss Flachsteckanschluss
Ausführung Einpressbuchse
Bemessungsspannung 1000 V/600 V
Bemessungsstrom 32 A
Berührungssicher Yes
Durchmesser 4 mm
Einbaudurchmesser 12.2 mm
Farbe braun
Kontaktoberfläche vernickelt
Länge 33 mm
Messkategorie CAT III/CAT IV
Stapelbar No
Logistics
Zolltarifnummer 85369010
Originalverpackung Beutel mit 20 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
