49.7077-21 | Stäubli Electrical Connectors

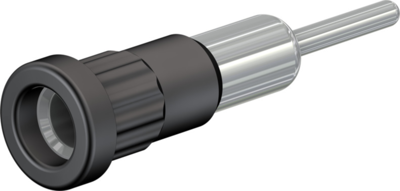

4 mm socket, round plug connection, mounting Ø 6.8 mm, black, 49.7077-21
As an alternative, we recommend the following item:
4 mm socket, round plug connection, mounting Ø 8.2 mm, black, 64.3011-21
Order No.: 22F7251
Manufacturer: Stäubli Electrical Connectors
per pc. 4.8076 € *
*incl. VAT plus shipping costs
4 mm Socket, 49.7077-21, Stäubli Electrical Connectors
Insulated, Ø 4 mm, rigid. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Round connecting pin Ø 1.9 mm.
Technical specifications
| Connection | round plug connection | |
| Version | press-in socket | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 25 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Installation diameter | 6.8 mm | |
| Colour | black | |
| contact surface | nickel-plated | |
| Length | 34.5 mm | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
