63.9318-26 | Stäubli Electrical Connectors

2 mm socket, solder connection, mounting Ø 3.9 mm, purple, 63.9318-26

Order No.: 86F8190
EAN: 4099889676983
MPN:
63.9318-26
EPB-2N/S VIOLETT
Series: EPB-2N/S

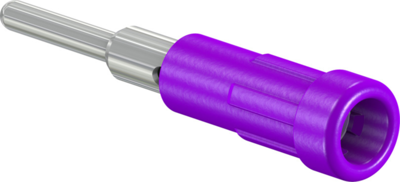

63.9318-26 Stäubli Electrical Connectors Laboratory Connectors Image 1

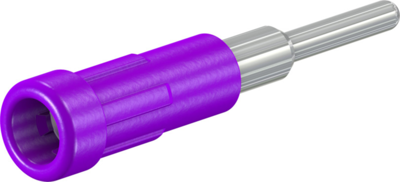

63.9318-26 Stäubli Electrical Connectors Laboratory Connectors Image 2
63.9318-26 Stäubli Electrical Connectors Laboratory Connectors Image 3
Image may differ
Unit Price (€ / pc.)
1.3923 € *
Available: 16 pcs.
Leadtime: On Request **
Total Price:
1.39 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3923 €
25 pcs.
1.1900 €
100 pcs.
1.0948 €
500 pcs.
1.0472 €
*incl. VAT plus shipping costs
**Subject to prior sale

2 mm Socket, 63.9318-26, Stäubli Electrical Connectors

Insulated, Ø 2 mm rigid. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Connection: Solder pin Ø 1.5 mm.

Technical specifications
Anschluss Lötanschluss
Ausführung Einpressbuchse
Bemessungsspannung 30 VAC/60 VDC
Bemessungsstrom 10 A
Berührungssicher No
Durchmesser 2 mm
Einbaudurchmesser 3.9 mm
Farbe violett
Kontaktoberfläche vernickelt
Länge 24.5 mm
Stapelbar No
Logistics
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
