63.9356-25 | Stäubli Electrical Connectors
4.5 mm socket header, solder connection, green, 63.9356-25
Unit Price (€ / pc.)
21.5747 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
21.57 € *
Price list
Quantity
Price per unit*
1 pcs.
21.5747 €
25 pcs.
20.2895 €
50 pcs.
19.0281 €
100 pcs.
17.7667 €
500 pcs.
16.4934 €
*incl. VAT plus shipping costs
**Subject to prior sale

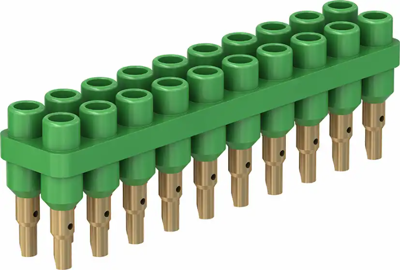

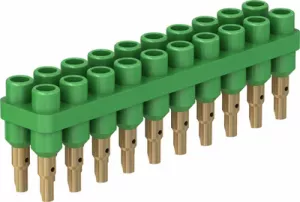

Socket strip, 63.9356-25, Stäubli Electrical Connectors
This 20-pole socket strip consists of 2 rows of 10 rigid sockets with solder connection. Individual socket mounting is unnecessary due to simplified panel drilling, orientation of solder connections, and compact mounting with just 5 screws.
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Buchsenleiste | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 10 A | |
| Berührungssicher | No | |
| Durchmesser | 4.5 mm | |
| Farbe | grün | |
| Kontaktoberfläche | vergoldet | |
| Länge | 59.6 mm | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
